Moving on to the topic of this post, I will now look in as much detail as possible at the current and future “Lethality” of the British Infantry, by exploring the weapons and sights employed and planned.
Section Weapons: UORs and beyond
The main weapon of the British Army, the SA80 assault rifle, has been significantly enhanced and modified for use in Afghanistan. In its current incarnation, the rifle is known as SA80A2 TES, even though SA80A3 is incorrectly frequently used.
The SA80 TES has had the handguard replaced with a Picatinny Quad-rail assembly developed and produced by Daniel Defense, it has been fitted with the vertical foregrip with extendable bipod (Grip Pod), it has had an interim weapon sight adapter system and it received the Vortex flash eliminator.
In 2011, the Magpul Industries polymer-made EMAG magazine was introduced to replace the previous, heavier steel one, achieving a considerable weight saving (from 249 grams to 130), with a million magazines on order over a 4-year period. On a typical load of 12 magazines, a soldier ends up carrying 1.56 kg less than before: definitely not bad.
For a while, the SA80 had the SUSAT sight replaced with the ACOG 4x, while now it is getting the ELCAN Specter 4x, selected as part of the Future Integrated Soldier Technology – Surveillance and Target Acquisition (FIST - STA)
|L85A2 TES fitted with Grip Pod, new handguard with rails, ACOG 4x on interim adapter, Vortex flash eliminator and Light Laser Marker (LLM) installed under the barrel.|
These are important improvements, and also come with the added bonus of a significant reduction in the weight of the rifle, down to 5290 grams, a reduction of over 1 kg from a baseline SA80A2 with optic.
The SA80A3 was (and should still be) envisaged as the weapon for FIST, at least in its initial years. Modifications would include a full-length top rail for easy fitting of optics and accessories (replacing the interim adapter) and further weight savings.
Powered rails are a future target, as part of improvements to the power distribution infrastructure in the soldier system. Powered rails would make it possible to fit lighter accessories, which would not need the huge amount of AA batteries currently used.
The power would come from the centralized energy solution of the soldier, but of this aspect I’ll talk in a future post in this series.
|Above, the new Handguard for the SA80, with integrated rails; and the E-Mag lightweight magazine UOR|
Further weight reduction is a target, and the Cranfield University has been working for the MOD on this, producing two SA80 prototypes incorporating many changes and mods. Stellite-made barrels were trialed, and validated: the greater resistance to heat provided by Stellite makes it possible to fire more rounds without carrying replacement barrels, or to remove material from the barrel to make it lighter but with the same useful life.
Parts of the SA80 were replaced with others made in plastics and carbon fibre, following a study into the stress suffered by the rifle during usage: where this is low enough, excess material (and weight) were eliminated.
The two recoil rods of the rifle, made of steel, were replaced with others made of titanium, saving 90g per rod.
Another prototype was used to lighten the Grenadier’s gun by providing a new, lightweight mount and assembly for the L123A3 (H&K AG36) underslung grenade launcher.
Delivered from January 2011, the prototype P1, completed with picatinny rails at the front, grip pod and ELCAN weights just 4829g, a reduction of 461g in weight.
The P1A prototype for the Grenadier with the AG36 launcher, without sights, weights 4629g, down from the current 5501g, again without sights. An impressive 872g difference.
I will cover the Cranfield University’s work more completely in a future post of this series, as they have also been working to develop lighter ammunition and further weight-saving, but I thought it was worth to put the SA80 work here, because lightening the rifle represents a possibly attractive option for the future, not just for Afghanistan.
As of 2011, it is anticipated that Initial Gate for a SA80 replacement programme will be in 2014 for delivery in the 2020s, but a SA80 ‘A3’ modification centered on significant weight reduction could be a cost-effective alternative.
In terms of sidearms, under a UOR, a new pistol has been procured to be issued in place of the Browning 9mm High Power. This gun is the SIG Sauer P226, known as L105 by the Army. The L105A1 is the standard pistol, the L105A2 is the P226R, which adds a rail for easy application of accessories, ahead of the trigger guard, and the L106A1 is a further improved variant with corrosion resistant finish.
A smaller compact variant, the P229, is in service as L117A2, since the earlier compact P228 was already in use with the SAS as L117A1.
A requirement for replacement of the Browning continues to exist in the Army plans, and apparently the Sauer, despite having performed well in Afghanistan, is not the definitive solution envisaged by the Army, which wants something else.
Under another UOR, the Army procured 200 12 gauge shotguns, produced by Italy’s Benelli. The M4 Super 90, which is also in service in the US, is known in the british army as L128A1. It weights nearly 4 kg, and carries 8 rounds in the extended tubular magazine, with different types of ammunition available. It has a 130 meters range with a solid shot, and 40 meters with buckshot. It is carried by the Point Man on patrol. The rifle in British Army service comes with foregrip, picatinny rails and EOTech holographic sight.
|L128A1 with rails and Eotech sight|
Possibly the most important and most appreciated UOR weapon, the L129A1 Designed Marksman Rifle is already a mainstay of the future army, which has been very impressed by the impact it has had in the field. Produced by Lewis Machine & Tool, the “Sharpshooter” has a 16 inches barrel, a lightweight polymer magazine for 20 rounds, an Harris bipod and fires 7.62 x 51 mm NATO rounds with high accuracy easily out to 800 meters. In Afghanistan it is issued at least on the basis of one per Section.
The initial order, placed in August 2009, was for 440 guns for 1.5 million pounds, but several sources indicate that consistent follow on orders might have already been placed. It would appear that the Army, as of August 2012, has been handed some 1500 L129A1s.
|Royal Marine Sharpshooter in action|
Apparently, the L129A1 has also been selected for another UOR, far less publicized, which is the “Sniper No. 2 system” or "sniper support weapon" for the renewal of the personal armament and kit used by the spotter in a sniper pair (the sniper using the L115A3). A very small hint of this was already provided back at the time of the initial order: "The Sharpshooter's capabilities are also complementary to the current Sniper System."
The main difference between the Sharpshooter and Sniper No.2 is made up by the sights: the Sharpshooter is fitted with a Trijicon ACOG 6X sight, compensated for bullet drop out to 1200 meters and fitted with a secondary Close Quarter Combat CQB sight on top, the Trijicon Ruggerized Miniature Reflex RMR. The Sniper No. 2 is used with a more powerful scope sight Schmidt & Bender (possibly migrated from the L96/L118 rifles being progressively retired) for day engagement and with OSTI MUNS night sight for nocturnal use. The MUNS (Magnum Universal Night Sight) is an image intensifying night sight that is installed ahead of the day scope and allows engagements out to 700 or more meters at night. The MUNS would appear to be used as night-sight solution for the rifles in Sharpshooter role as well. It can be seen mounted on a L129A1 at minute 4:03 of this Army video.
The L129A1 is issued with 20-rounds P-mag polymer lightweight magazines. The L129A1 is used in Sharpshooter role with the 16 inches barrel, but a 12 inches and a 20 inches barrel are available, and it is not absurd to assume that in the Sniper No. 2 configuration the longer barrel might be used.
Issued one per Section, (27 or more per battalion) the L129A1 is an excellent weapon, and around 1000 are the long term requirement for Sharpshooter role. While there are indications of additional orders having been placed past the initial 440, I’ve no details available.
The L129A1 has also been seen used by RAF heli-snipers on Puma helicopters deployed for the protection of the Olympic games, another demonstration that the well liked weapon is finding new roles in the force.
A number of G3A4 rifles and an unknown amount of H&K 417 are in service, used for for a variety of missions: the 417 is in use with the Special Forces which needed a sharpshooter quickly and could not wait for the Army to make trials and take decisions. The H&K 417 has reportedly some defects and issues, and was beaten by the L129A1 during british army acceptation trials. The G3 is seen quite frequently in the hands of Royal Marines on ships.
A long-term rationalization on L129A1 might be attractive.
|Overwatch on HMS Cumberland alongside in Libya for the 2011 Evacuation effort: the soldier is armed with the G3A4|
The L110A2 Minimi (the british Army and Royal Marines adopted the Minimi PARA, with short 14’’ barrel and sliding buttstock) has not been left out either. Modifications to the machine gun were part of the soldier system improvements for Afghanistan, and a reconfigured Minimi was shown during the presentation of the FIST STA sights package. I’m not entirely sure on the timeline of introduction of these modifications, but selected improvements include Grip Pod downgrip, Picatinny tri-rail handguard and top cover, retractable Savit buttstock, and a prong-style flash “eliminator”. The improvements comport a weight reduction of .29 kg, down to 6.91 kg (15.24 pound).
In the longer term, beyond Afghanistan, the Army intends to “reconfigure” the LMG. This is likely to involve additional changes over those explained above, and very possibly include a longer barrel: the short one used in the Minimi has been widely criticized, and it is said that it reduces the useful range of the Minimi to 200 meters, and in any case less than the range of the SA80, which uses the same round but from a 20 inches barrel.
|Grip Pod (above) and the new butt stock (M4 style) for the Minimi|
As widely known, taliban often fire from 500 or more meters away, and the British Army has had to reintroduce the GPMG Light Role (L7A2 with bipod and provision for 50rounds belt) into the Sections/Patrols, after removing it years ago.
Probably to provide a lighter and less bulky alternative to the “gimpy” in foot patrols, the MOD eventually placed a UOR order for the acquisition of 176 “Major Minimi”, the Minimi 7.62x51. The first 176 had to be delivered by the end of 2011, and the contract includes options for a further annual order of 250 machine guns in 2012, 2013 and 2014.
The Minimi 7.62 offers 70% commonality to the 5.56 Minimi, and is more than 30% lighter than the GPMG. Of course, it does not deliver quite the same firepower at range as the General, but the Minimi 7.62 represents a good compromise.
The British Army in Afghanistan has been using the M72 LASM (Light Anti Structure Munition), also known as M72A9, procured as UOR in 2007 as an interim solution on the way to the intended Anti Structure Munition.
The 66mm LASM rocket is produced by Norwey's NAMMO Talley, and comes within an extendable, disposable (single-shot) tube which is less than 80cm long when folded for transport. Weight of the system is 4.3 kg, a lot more than the original M72 Light Antitank Weapon (LAW), mainly due to the larger warhead employed in the LASM in its new role. The LASM is used against fixed positions, bunkers and other buildings, and it uses it's kenetic energy to penetrate the outer walls of a structure before the high explosive warhead detonates inside.
|The LASM rocket and tube (extended, ready to fire)|
The Anti Structure Munition was selected with a 7 million pounds assessment phase which saw Dynamit Nobel and Saab Bofors Dynamics compete for the contract. Dynamit Nobel eventually won, offering a rocket launcher derived from the Rafael Matador.
The contract, signed in 2006, covered an unspecified number of systems plus training and five years of support, for 40 million pounds. In-service date was 2009, then slipped to 2010, and the rockets possibly did not reach Afghanistan until 2011, with the LASM reportedly still being used, even alongside the ASM.
The LASM should finally retire this year, as the ASM enters full service and the FIST UGL Control System arrives in theatre.
The L2A1 ASM’s problem is that it weights close to 10 kg, a feature that is highly unlikely to be appreciated by the soldiers out in the field. Its advanced design, however, offers increased safety as it is compliant to Insensitive Munition regulations and the tandem warhead can be used to destroy light-armoured vehicles or mouse-hole walls (even in triple-brick walls), or it can be programmed to smash inside a building and explode inside with devastating effect. It has a minimum range of 10 meters and an useful range of up to 400 or 500 meters.
|This photo shows the elusive ASM, laying on the ground in foreground in the picture. The man climbing up appears to carry a LASM over his backpack.|
In the Anti-Tank role, the British Army has been using the LAW80 for years (at entry in service it replaced the L14A1 Carl Gustav recoilless rifle and M72 LAW rocket which then made a return as LASM), this 94mm rocket being the baseline weapon, with spaces for the stowage of 8 being reserved into the Warrior IFV, for example.
Of course, the LAW80 has been aging, and it eventually became obsolete before a replacement was ready: perhaps the most relevant defect being the impossibility to fire the rocket from enclosed spaces, so this brought to an UOR, met by purchasing the AT4CS rocket launcher as ILAW (Interim Light Antitank Weapon).
In 2002, the Saab Bofors Dynamics MBT LAW was selected to become the Army’s Next-Generation LAW (NLAW), offering a fire and forget Predicted Line Of Sight guided rocket with a minimum range of 20 meters and a maximum range of 600+ meters, capable to defeat Main Battle Tanks. The rocket can be fired safely from enclosed spaces. It uses top-attack mode against tanks, but also offers Direct fire option against light armor and bunkers or buildings.
The launcher is reloadable, and the system is compliant to Insensitive Munition regulation. Around 14.000 rockets have been ordered/acquired, with entry in service from 2009 and an expected service life of some 20 years.
The system weights 12.5 kg, however, so it is not that light to carry around. In the contract, an In-Door Training aid and an Outdoor training round were included.
When the transition will be completed, the British Army section will have access to the ASM and NLAW systems, both top of their classes, as the other interim and obsolete systems are retired. The weight issue, however, is serious.
The L7A1 (FN MAG 60.20 T3) and L7A2 (FN MAG 60.20 T6) GPMG were originally manufactured on license by the Royal Small Arms Factory at Enfield Lock in Greater London. When that closed, UK production of GPMGs and spare parts moved to Manroy Engineering Ltd of Beckley, East Sussex, better known for being the UK’s provider of .50 Heavy MG. In 2008, following problems with Manroy who lost the rights to produce the GPMG, the UK’s L7A2 machine guns are produced by H&K in Oberndorf, Germany.
The GPMG is used in Sustained Fire and Light Role modes. In SF mode, it is mounted on the L4A1 stable light mounting developed by the Royal Small Arms Factory. This tripod mounting incorporates a recoil buffer unit, permits all-round traverse and has a quick-release mechanism allowing free traverse, elevation and depression. In Light Role, it has a folding bipod and can take 50 rounds belts. The GPMG is a popular weapon in the army, but the weight is its obvious defect, and a reason for its disappearance from the Section when the SA80 era started.
The loss of firepower and the reduction in the ability to suppress the enemy, particularly at range, was badly felt, however, and the British Army eventually adopted, for some years (until around 2008, indicatively), the US model of adding a Maneuver Support Section (MSS) to the platoon, containing 2 GPMGs, at the cost of adding 4 men and 1 NCO.
Eventually, in the early 2000s, the Minimi LMG was procured as a replacement for the L86 LSW, and the under slung grenade launcher was introduced to the Section. The cost was the loss of the Platoon’s 51mm mortar and of the recently introduced MSS, removed for saving manpower. Both choices did not prove happy ones, as we’ll see.
In Afghanistan, the GPMG ended up being heavily used, and it returned to the Section, with each patrol going out having one. At least.
However, weight issues remain, and weight reduction for the General is a recognized objective, even after the ‘Major Minimi” UOR. Cranfield University has been working on it, with ambitious long-term aims: as of 2010, the target is a weapon mass reduction of 3.6 kg and a further 6 kg saving in the weight of 800 rounds and belt links.
Other studies have been made on light medium machine guns around the world, and H&K proposes its own solutions, from the H&K-121 (a new machine gun design) to the Lightweight L7A2 GPMG revealed in June, sporting a welcome 1.8 kg reduction in weight thanks to modifications that include a fluted barrel, picatinny rail for sights on top cover, folding butt, “dark earth” colored body matching the Multi Terrain Pattern camouflage and an improved feed tray with ‘pawls’ to stop the ammo belts from slipping around. This gun does not include titanium-made body, which has been mooted for a long time and is possibly still being trialed. It might not have been judged mature enough yet, or it might be a money problem. In any case, it remains desirable and under study at Cranfield: it is estimated that it might imply a saving of up to 3 kg.
For the future, beyond Afghanistan, a Lightweight GPMG remains a stated army priority.
|Lightweight L7A2 by H&K|
The underslung grenade launcher (H&K AG36, adopted by the Army as L17A1 for use on the L119A1 carbine and as L123A1, A2, A3 for use on SA80) only reaches half of the distance covered by the 51m mortar, at most, and is not as lethal, so that the Army made it clear that a requirement exists for procuring, at some point, a capable Medium Velocity 40mm (40x46) grenade offering range of 800 meters or more. The UGL currently employs Low Velocity 40mm grenades. The High Velocity grenades (40x53) are used by the GMG, and are unsuitable for the UGL, but several types of Medium Velocity rounds (in 40x46 or 40x51 mm calibers) are available and/or in development.
These add quite a lot of recoil force the Grenadier has to deal with, but carry more explosive and double the range out to 800 meters or more.
Differently from the US M203 grenade launcher, the UK-adopted, H&K AG36 UGL is readily capable to take the longer 40x51 mm grenade, eventually, as its breech does not slide forwards for reload, but swings open to the left.
In the meanwhile, this year the FIST UGL control unit will entry in service, and by reducing the CEP at 300 meters range to just 5 meters it will dramatically enhance the effectiveness of the weapon.
|H&K AG36 UGL open for reloading|
However, as of now, there is no Medium Velocity grenade in service, and anyway it has been recognized that, even when there will be one, it won’t fully replace the effect provided by the Platoon’s hand-held light mortar.
And in fact, a UOR was launched and procurement of a complete 60mm Light Mortar capability went ahead, possibly procuring a total of 630 mortars which will stay in the Army in the long term, and not just for Afghanistan.
Two variants of 60mm mortar have been procured, both from Hirtenberger: the M6-640 is used at Platoon level, and is an Hand-Held (HH) ‘Commando’ weapon. In Commando mode it weights around 4.6 kg and is 726 mm long with a 1921 meters maximum range at Charge 3.
The M6-895, with longer barrel ( 984 mm, 5.5 kg ) and bipod, is used as a Light capability added to the Mortar Platoon at battalion level. Mounted with baseplate and bipod, it has a maximum range of 3610 meters, is 977mm long and weights 19,5 kg. The M6-895 can also be used in Hand-Held mode after undergoing a simple 2-minutes conversion. In Hand-Held mode it can be used to maximum Charge 3, with a range of 2100 meters.
The 60mm ammunition is the same, and there is a huge assortment of rounds available: the 1.4 kg HE bomb generates 590 splinters, and there is a Practice round, a Smoke-White Phosphorous with a 90 seconds burnt time, a 90-seconds Red Smoke round, an IR illuminating round capable to provide 35 seconds of illumination over a 1200 meters radius area, and others.
The M6-640 can be fitted, eventually, with the same bipod and plate as the M6-895. For both mortars, the maximum rate of fire is 30 rounds per minute.
The L134A1 Grenade Machine Gun was first introduced as a UOR, with an order for 40 systems from H&K placed in November 2006. A second, much more relevant 18 million order was placed in February 2008, to fulfill the requirement for the infantry Fire Support Weapon. This order also included a complete suite of weapons optics including telescopic day sight, image intensifying and thermal night sights, and a laser rangefinder. A simulated training system, allowing to train realistically without firing a single grenade, was also procured.
The Fire Support Weapon focus was on providing weapons and tripods specifically for the use of the GMG in the fire support elements of Light, Mechanized and Airmobile infantry. Armoured infantry, having the Warrior’s gun in support, can do without.
The GMG anyway remains fully vehicle-compatible, with integration tackled by procuring the ISTEC Universal Gun Mount, which provides a single, common assembly for mounting GPMG (single or twin), HMG or GMG. It has been reported that by 2010-11 the holdings of GMGs had increased to around 400.
|Training with the L111A1|
Finally, the L111A1, the immortal Browning .50 Heavy Machine Gun. Prior to the Iraq and Afghanistan conflicts, the Army had left its holdings of .50 HMG wither down to just 156 guns, but successive orders, according to some sources, have brought the number up to around 1100 by 2011!
The L111 is produced by Manroy, which also introduced a ‘Soft Mount’ reducing recoil and improving accuracy, and a Quick Change Barrel system.
In the long-range Anti Tank role, over the 2500 meters distance, there is the well known Javelin, in service since 2005. The missile has been widely used to hit compounds and other targets at range, leading to a few consistent orders to replenish the stocks of rounds. The Aiming unit of the Javelin provides a valuable ISTAR kit by enabling long range observation. The UK continues to use the L16 mortar, in 81mm caliber, as its heaviest support weapon in infantry formations, pretty much an exception to the rule since the allies have long moved to the 120mm mortar at battalion level (US, Italy, France, Germany…) and nations such as Russia and China have long embraced the advantages offered by 120mm Mortar-cannons capable to fire in direct as well as indirect mode.
|L16 in action|
This, however, will be material for a future post in the series.
Sniper System Improvement Program

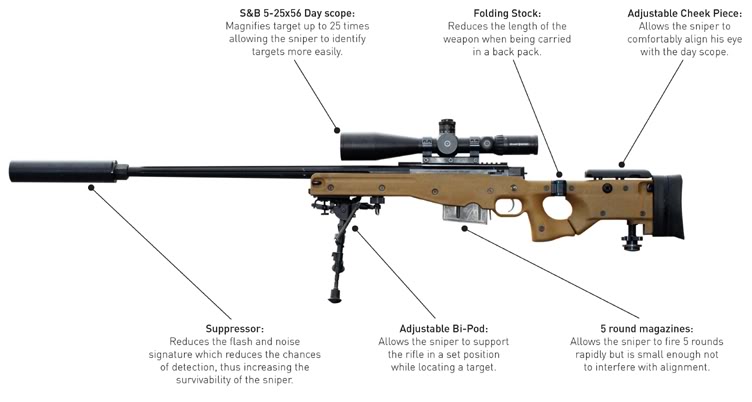

The L115 designation in British Service indicates the Accuracy International AWSM (Arctic Warfare Suprt Magnum) rifle in .338 Lapua Magnum caliber. The first rifles purchased were known as L115A1 LRR (Long Range Rifle) and saw extended usage in Afghanistan and Iraq in 2001 and 2003, fitted with a Schmidt & Bender 3-12x50 PM II optics.
The L115A2 followed, and introduced several improvements, such as Tan colored body, Harris bipod, fluted barrel and suppressor. It was effectively a prototype for the further enhanced L115A3.
L115A2 rifles are similar enough to the final A3 configuration that they were converted to A3 standard, but the legacy L115A1 LRR (Long Range Rifle) was not modified.
In 2007, finally, the Sniper System Improvement Program kicked in, and in November 2007 the MOD announced the selection of a new standard sniper rifle for Army, Royal Marines and RAF Regiment, with the placement of a 11 million pounds order in March 2008 to Accuracy International for 580 of the new, improved AWSM variant, the L115A3.
The new rifle came with a more powerful optic (with twice the magnification, at x25 against x12), the Schmidt & Bender 5-25x56 PM II. Other improvements include a suppressor to reduce the flash and noise signature, a folding stocks for improved ease of carriage, an adjustable cheek pieces assembly for more comfort and better eye alignment with the telescopic sight, a Butt spike or ‘monopod’ to enable the shooter to observe the target area for extended periods with minimal fatigue, a new adjustable bipod and 5 round box magazine.
The L115A3 would finally entirely replace the L96 family (L96A1, L96A2, L118A1) in 7.62x51 mm, increasing range and lethality with the adoption of the more powerful Lapua Magnum round.
This purchase was followed by the Sniper Thermal Imaging Capability program, for the purchase of suitable night sights. Two products of Qioptiq were selected: the SVIPIR2+ as Thermal Sniper Sight, which is mounted ahead of the scope. The VIPIR2S+ is issues as night sight for the Spotter (also known as No.2) and can be handheld or mounted on tripod.
The SVIPIR2+ is designed to operate in total darkness, being a Thermal camera and not an Intensifier sight (which needs at least a little external light source) and enables engagements out to 1200 meters at night and/or in foul weather, fog or dust cover. It is also fairly light and small compared to other comparable systems, but with the defect that it needs 4 AA batteries at a time, and empty them in as little as 6 hours.
In Iraq, the KN203 Night Sight Simrad was widely used. This is a II system that clamps onto the day sight scope, and might still be used as complementary to the new thermal sights. In presence of some form of light, (star, moon light or other), the II sight is very useful for identifying the target. The thermal imager does not need external light sources, on the other hand, but identifying the soldier you are looking at is very difficult.
The sniper teams will also use the Kestrel 3000 pocket weather reader to determine a variety of factors crucial to the shot's accuracy, from winds to humidity levels.
The spotter might also be carrying the LEICA Vector laser range finder and the Leupold x40 spotting scope.
SSIP also covers other elements of the sniper’s equipment, from special tripods to other bits of kit: one is the Vectronix PLRF 15C Pocket Laser Range Finders, ordered in 2007. PLRF15C can lase a target out to around 5 km, and it includes a DMC Digital Magnetic Compass feature. This small addition provides a wealth of additional data: azimuth or bearing, inclination or elevation; horizontal distance and height difference – not only between the observer and an object, but also between two remote objects A and B.
|A sharpshooter accompanied by a soldier pictured here looking at the enemy with a PLRF15C|
A number of rifles in .50 caliber are used by British Forces, from SF to the Royal Marines, which use the Barrett as L82A1 Infantry Support Weapon. The Accuracy International AW50F .50 with folding stock was also procured, and put in service as L121A1. It used by Royal Marines in counter-smuggling, as it can disable a boat with a shot well placed, but it is also use to shot at IEDs from the distance.
The second major requirement in terms of weapon system within Sniper System Improvement Program was an Anti-Material capability provided by a semi-automatic 12.7 mm rifle to complement or replace the existing arsenal. In 2009, this requirement was estimated in around 50 rifles. Deliveries had to be made in 2010, and the selection was down to two competitors: the Accuracy International AS50 and a modified M82A1 Barrett variant. The requirement was specifically for a .50, semi-automatic, accurate enough to enable the sniper to engage sequentially 5 targets in 10 seconds. The rifle would have to immobilise a vehicle engine and penetrate laminate and toughened glass by day, out to a minimum requested range of 1800m, with a desired range of 2000m.
AS50 and M82A1 were selected for final trials, with 8 rifles of each type requested for appropriate evaluation. Unfortunately, I’ve been unable to find further information, and I don’t know if this branch of the Sniper System Improvement has progressed, or if it fell victim to budget cuts.
A wider adoption of Anti-Structure Precision Rifles is worth considering, as such heavy caliber weapons have gained a lot of recognition during operations. The US Army and Marines identified the .50 sniper rifle as one of the most important capabilities they had available in Iraq, where the sniper war was incredibly complex and ferocious.
.50 Sniper rifles are used by Canada, US, Italy and many others. The US case is particularly interesting. In the US BCTs, the Infantry company is given a Sniper Team made up by 3 men: one is armed with the XM107 Barrett .50, one has the M24 in 7.62mm caliber and one man is in the close protection role, armed with an assault rifle, complete with under slung grenade launcher, which provides a chance to break free of engagements.
In the Italian “medium-weight” brigades, the Infantry Company is given a sniper team of two men. The plan is to give the “sniper” a .50 Barrett, while the “spotter” gets a SAKO TRG 42 in the same .338 Lapua Magnum caliber of the L115A3.
The british sniper team, conversely, uses the .338 caliber weapon as main sniper rifle, with the scoped L129A1 apparently selected as weapon for the spotter/No. 2. On paper at least, the intended force is a Sniper Platoon of 16 men in 8 teams per each infantry battalion, even if the aim is to give each platoon a sniper (pair, ideally).
The combination L115A3/L129A1 makes a good sniper team, but in my mind using .50 sniper rifles only for Special Forces, stand-off counter-IED and niche roles, as purely anti-material (anti-boat most of the time!) weapons is depriving the wider Army of a very useful capability. As part of the Sniper enhancement programme, in my opinion a reassessment of the .50 precision weapon is necessary.
In June 2010, the MOD and BAE announced that a first batch of a million 5.56x45 mm rounds would be produced for experimentation, with Qinetiq to evaluate the effective eventual improvements.
Officially, this had nothing to do with Afghanistan, but unofficially, improved range and lethality quickly available for use in Afghanistan were desired.
The current L2A2 round (SS109 NATO) uses a steel–tipped, lead core bullet, while the new, improved SS109 was intended to have a full-steel core, removing lead entirely from the equation (and so doing also removing the concerns of lead poisoning, making greenpeace happy). Nicknamed the “Dirty Harry” round, its current status is unclear. Just this week, the Guardian wrote that the Army has no lead-free bullets, and no plans to adopt them. Either the Guardian is wrong, or Dirty Harry did not progress.
If successful, the new type of bullet would be adopted for 7.62 mm rounds as well.
The US Army has long been trying to improve the 5.56 round’s lethality. Their M885A1 round, development of the baseline M885, encases a steel core in a thin copper jacket which fragmentates in high speed impacts. The UK refuses to adopt this solution due to strict interpretation of the Hague convention, which would appear to make this unlawful.
The US have also used the MK 262 open tip match bullet, but even this solution is considered banned.
Efforts to improve the bullets, making them much lighter, if not more effective, continue.
Sights and Night Vision
Following a variety of UORs which brought into service a wide range of day and night sights, from the ACOGs to the MaxiKite, the Synergistic Individual Surveillance Target & Acquisition (SISTA) UOR brought into service a number of VIPIR2+ night thermal weapon sights, which had already been preceeded by 300 hand-held VIPIR-S surveillance sights ordered in March 2006 and by a further 450 ordered in January 2007.
The Army was finally able to move onwards with FIST STA in 2009, and place a coherent order for the complete re-equipping of pretty much the whole army.
|VIPIR2+ sights installed on a GPMG and SA80. Now that FIST STA solved the problem of providing night sights to the dismounts, it is likely that the VIPIR2s will more and more frequently be seen on support weapons, from GPMG to HMG and GMG|
The Army was finally able to move onwards with FIST STA in 2009, and place a coherent order for the complete re-equipping of pretty much the whole army.
In fact, the initial order, signed in September 2009 was for delivery and in-service support of 95 Infantry Company ‘packs’, but in December 2010 a follow-on order of 51 further packs brought the total to 146 Companies, enough for whole (or almost) of RAF Regiment, Royal Marines and British Army. The first 95 Company Packs will all be delivered by 2014, with the rest to follow.
FIST STA includes:
Lightweight Day Sight ELCAN Specter OS4X each man in the Section gets one. It is the intended replacement for the SUSAT, with the (still evolving) plan predicting a gradual retirement of the SUSAT, to be complete by 2025. The ELCAN is a 4x sight, and is fitted as backup for close range engagement with the Shield-produced Mini Sight Reflex Red-Dot, said to be the smallest and most compact red-dot sight in the world.
The introduction in service of the L129A1 rises an interesting question, as the sharpshooter in the Section envisaged by FIST was to employ the L86A2 LSW, with the 4x sight. As we have said, the L129A1 is using a 6x ACOG sight, and it would be a retrograde step to reduce the magnification available to the marksmen. As I write, it is currently unclear what the long term solution will be. Perhaps bringing into FIST the ACOG 6x, or adding a dedicate procurement of the ELCAN 6x…?
Fist Thermal Sight (FTS) a high performance un-cooled Thermal Weapon Sight that provides the User with 24hr target detection, acquisition & engagement capabilities out to extended ranges, in every weather conditions and even in total absence of any external light source. The FTS is equipped with a 640x480 format un-cooled thermal core, and is powered from AA batteries.
The FTS has an integrated Infra Red Laser Aimer (IRLA) for enhanced target identification, along with the integrated fall-back Close Quarter Battlesight (CQB) red dot sight from Shield, as we said earlier.
The FTS also has the ability to be controlled remotely via the weapon hand guard, again demonstrating an enhancement in the wider integration context.
In each 4-man Fire Team, the FTS is assigned to the Leader and to the LMG Gunner.
Common Weapon Sight the Pilkington Kite night sight is a Generation III Image Intensification (II) night sight capable to use starlight or moonlight to provide night vision. In the Army is known as Common Weapon Sight, and has been around for some time. Under FIST STA, the sight is upgraded and fitted with the Shield red dot, and then re-issued. It is used by the Grenadier and provides 4x magnification. It weights 990g excluding the 2 batteries and offers night detection of a standing man out to 500 meters with sole starlight available.
MaxiKite 2 is the big brother of the CWS, and just as CWS it was already in service prior to FIST STA contract. Like the CWS, it gets upgraded and fitted with the red-dot before being re-issued. The Maxikite offers 6x magnification and allows targeting at night over long range (a standing man will be seen at 750 meters) and will be issued to the Sharpshooter. It weights 1.36 kg and can operate for 70 hours with a couple of batteries.
Grenadier UGL Fire Control System the SA80A2 with UGL is fitted with a UGL sight provided as a UOR by Istec Services of Hertfordshire, coupled with the FIST-specific Rapid Acquisition Aiming Module fire control system jointly developed by Vectronix of Switzerland and Wilcox Industries. RAAM instantly calculates the distance, angle of declination or inclination, and adjusts the point of aim accordingly.
The combined solution is valid day and night, and reduces the Circular Error Probable to 5 meters over a 300 meters range.
MOSKITO Commander’s Target Locator a binocular day/night target acquisition system, weighting less than 1.2 kg and offering 5x daylight and 3x night magnification with a 24 hours of night vision observation duration with a set of batteries. MOSKITO measures range, azimuth and vertical angle, locating NATO standard targets up to 4 km away.
Ruggerized Digital Camera a sturdy, highly resistant digital camera to take photos or short videos valuable for intelligence examination. Issued one per Section. This commercial off-the-shelf camera produced by Olympus was specified for FIST due to its ability to transmit and receive images from patrols. Weighing only 200 grams (6.4 oz.), it is designed for harsh conditions. The camera reportedly operates even after being immersed in 10 meters (33 ft.) of water or dropped 2 meters.
Lightweight Infantry Periscope produced by Uniscope, Israel, this foldable periscope is issued one per Section and enables soldier to look past a corner without exposing themselves. It is seen as an interim solution: cameras integrated in the rifle sight relaying imagery to a head mounted display were trialed, but judged not yet mature enough. Besides, with the freezing of the “C4I” elements of FIST, there is currently no data architecture and no selected display to use in such a system, which features, instead, in Soldier Systems such as Italy’s Soldato Futuro, France’s FELIN, the various US projects and so along. This architecture makes it possible to fire accurately exposing only the weapon past the cover, something that with the LIP is not possible.
The LIP offers a 12-deg. field of view and 3X magnification.
While not procured under FIST STA, the Light Laser Marker (LLM) is an important component of the Lethality package. Issued in measure of one per soldier, the LLM-01, a design by Oerlikon Contraves, is a small unit mounted on the personal weapon and combining Visible Red Laser Beam Marker; Invisible IR laser marker for use with night vision equipment; IR illuminator, again for facilitating use of Night Vision equipment and II weapon sights and a Lamp Head (Visible Light torch) or Laser Head available in Marker and Illuminating variants.
|LLM unit: (1) Visible Red Light Laser (2) Invisible IR laser (3) IR illuminator provides invisible light for use with NVG (4) Visible Lamp Light or IR Invisible Lamp Light|
In the same role, the Special Forces favor the AN/PEQ-2, which is standard issue of the US forces.
|This well known photo of a squad from the Special Forces Support Group (1 PARA) shows an H&K 417 sharpshooter rifle (second man knelling from the left) and SA80 rifles all very evidently fitted with the AN/PEQ-2|
Also not directly a FIST STA component, the Head-Mounted Night Vision System (HMNVS) AN/PVS-14 is fundamental. This monocular sight, used extensively by the US forces as well, is now the standard night sight for the british armed forces, with 32.000 units in inventory as of 2011 and some 10.000 more planned, enough to give night vision to all deployed soldiers, in each section. An additional order (for all of the 10.000 planned?) has been placed in early april this year, with deliveries to be completed by 2016.
|AN/PVS-14 can also be used hand-held or rifle mounted|
The British Armed Forces also use the LUCIE sight, and will use it at least out to 2023 according to current plans. LUCIE is an image intensified (II) night vision goggle.
In this area, in 10 years, the British Army made huge leaps, as this historic figure from a 2003 Written Answer show: back then, Night Vision was pretty much stuff for special forces, with available numbers of sights for the PBI (Poor Bloody Infantryman) low or extremely low.
In the future, FIST envisages a Head Mounted Sight (a function of a multirole Head Mounted Display, I believe, like in other Soldier Modernization programmes) and a new kind of “all-doing” weapon sight combining optical, Image Intensifier and Thermal Imaging modes to provide a day/night all-weather system.
Research and development should start in 2014/15, and proceed towards a FIST 2 capability which will start delivering from 2018. FIST 1 is the current FIST package in delivery: it had to comprise Increment 1A (the weapon sights as listed above) and a Situational Awareness/C4I package under Increment 1B.
Increment 1B was cancelled, and FIST restructured in “epochs” (1, 2 and 3). Epoch 2 will be particularly important as it is a bridge, comprising the many UORs moving into Core post-Afghanistan, towards the targets of the full FIST platform for the 2030.
Another Surveillance and Target Acquisition instrument available to the Army at Team level and above is the Thales Surveillance System And Range Finder (SSARF), 707 of which have been procured with deliveries completed in 2011. The SSARF is similar in concept to the MOSKITO, but features an un-cooled thermal sight element, and is used by Fire Support Teams to detect targets for subsequent mortar, artillery or air attack.
|Observing with SSARF|
Again, the British Army ordered in March 2012 a significant number of Sagem (Safran group) JIM LR (Long Range) multifunction infrared binoculars for the “Long Range Thermal Imager” requirement. The JIM LR offers day/night (infrared) vision, rangefinding, laser pointer, North seeker, GPS and data transmission. The British Army variant also provides Image Fusion between the infrared and visible channels, to penetrate camouflage during the day, and to provide true all-weather vision (through smoke, etc.). It will also be able to record imagery on USB supports.
VIPIR-S, SSARF and JIM LR should more than make up for the soon to come retirement of the old LION short range and SOPHIE Medium Range thermal imagers, by providing greatly increased Short, Medium and Long range thermal imaging and surveillance capability.
The Army has a list of programs and priorities for the next few years, and in the “Lethality” sector, we can summarize them in the following list:
- Reduce weight as an absolute priority as part of the long term aim of achieving a maximum 40 kg load per soldier by 2020 and a 30 kg load by 2025, with a 25 kg load considered ideal.
- L129A1 expected to live on “well past 2015”, being brought into core
- NLAW and ASM fully in service
- 60mm Mortars to stay
- SA80 replacement initial gate in 2014, with fielding in the early 2020s. A SA80A3 upgrade remains a possibility.
- The polymer-made lightweight magazines procured as UOR are intended as an interim solution, with a Lightweight Magazine Long-term replacement planned.
- A Lightweight Bayonet is planned
- A Lightweight GPMG is planned
- The LMG Minimi will be “reconfigured”, likely to reduce weight and install a longer barrel
- Weapon Paint Rounds systems for training
- Powered rails on the personal weapon, connected to the Soldier’s power system for easy attachment of accessories and reduction in the number and weight of batteries to be carried
- Round counting
- Rationalization of Hand Held Thermal Imaging equipment
- Lightweight binoculars and monoculars
- Development of an Universal Helmet Mounting system
Personally, I’m adding to the list the already mentioned .50 sniper rifle reassessment, plus considerations for adoption of the 120mm mortar-cannon. In future posts I’ll also explain my opinion on the need for re-establishing the Platoon-level Maneuver Support Section and the need for a powerful Fire Support Group at Company Level.
Finally, a note to this and other posts of this series: the argument I’m treating is immense, and very complex. A huge numbers of UORs and years of delays, changes and rethinks on a variety of programs have made this subject very complex to treat in full detail.
Despite my best efforts, I might be missing something here and there, or even making some mistakes. Believe me when I say, however, that I’ve tried to cross-cue as much as possible, using as many, as reliable and as up to date sources as possible. I will welcome any useful contribution you can make to improve this and other posts.
